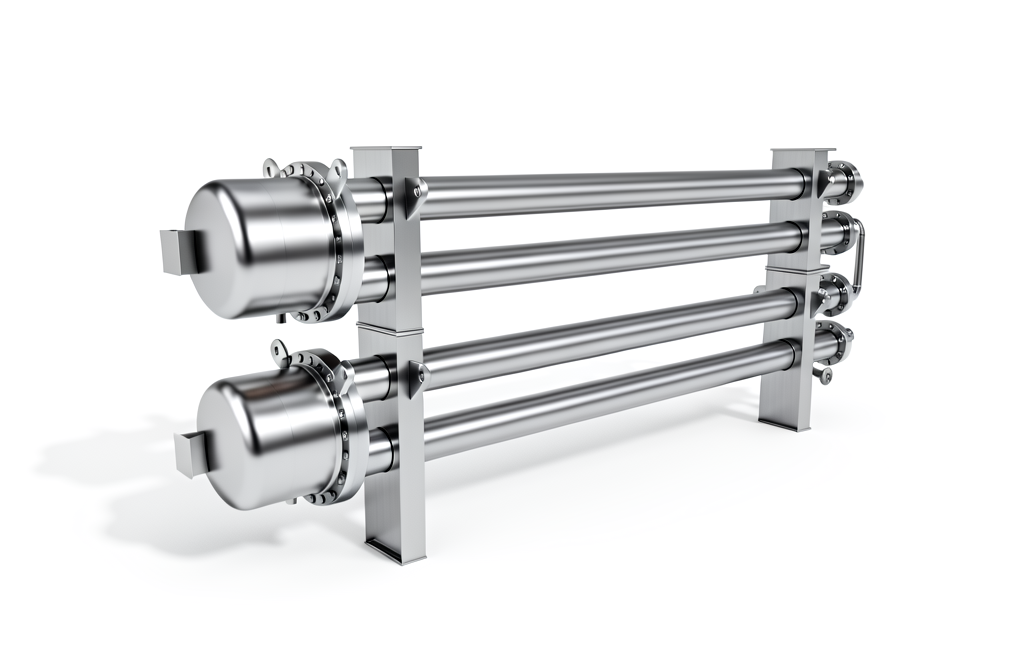

Multi-Tube Hairpin Heat Exchanger Design & Manufacture

Safe Professional Innovative

Superior thermal efficiency for high-duty processes, extreme cyclic temperatures, and safety-critical environments. Graham Hart Process Technology engineers bespoke multi-tube hairpin exchangers that combine the compact versatility of double pipe units with the high capacity of shell and tube technology.

Graham Hart Process Technology specialises in Multi-Tube Hairpin Heat Exchangers, often referred to as "multis." These units utilise a U-tube bundle within separate shells for each leg, achieving true counter-current flow. This design is specifically engineered to handle significant "temperature crosses" and thermal expansion without the need for expansion bellows, making them the premier choice for high-pressure, high-temperature, and cyclic industrial services.

What is a Multi-Tube Hairpin Heat Exchanger?

A multi-tube hairpin heat exchanger is a hybrid thermal solution featuring a bundle of tubes enclosed within a U-shaped outer shell. Unlike traditional shell and tube exchangers that use multiple passes, the hairpin design utilises a single-pass, pure counter-current flow. This maximizes the log mean temperature difference (LMTD), allowing for higher heat transfer rates and the ability to heat a cold fluid to a higher temperature than the exiting hot fluid.

Why use Multi-Tube Hairpin over conventional Shell and Tube?

Multi-tube hairpins are preferred when your process involves a "temperature cross" or extreme thermal cycling. The independent movement of the tube bundle within the shell naturally accommodates thermal expansion, eliminating the stress-related failures often seen in fixed tubesheet designs. Furthermore, the modular nature of hairpin units allows for easier maintenance and future process scaling by adding or rearranging sections in series or parallel.

Technical Capabilities & Specifications

Feature	Specification / Capability
Design Standards	ASME VIII, PD 5500, EN 13445, TEMA
Operating Range	High Pressure (exceeding 10,000 psi) to Full Vacuum
Thermal Range	High-Temperature to Cryogenic applications
Cross Contamination	Optional MTXF/MTXR headers for lethal or sterile service
Material Options	Carbon Steel, Stainless, Duplex, Titanium, and Hastelloy

The Graham Hart Process Technology Difference

The "workhorse" shell and tube exchanger often struggles when faced with terminal temperature differences or rapid cycling. In these scenarios, the mechanical stress on the tubesheets can lead to cracking and interstream leakage.

At Graham Hart Process Technology, we address the "Why" of your operational reliability. Our multi-tube hairpin designs utilise separate tubeplates for each leg and advanced gasketed joints, allowing the bundle to expand and contract freely. For safety-critical industries like Bio-Pharmaceutical or Nuclear, we offer unique Separation Headers (MTXF/MTXR) that create a physical break between fluids. This ensures that even in the unlikely event of a seal failure, the two fluids cannot mix, providing an unmatched level of process security.

Frequently Asked Questions

What is a temperature cross in heat exchangers?

A temperature cross occurs when the outlet temperature of the cold fluid is higher than the outlet temperature of the hot fluid. Multi-tube hairpin exchangers are the most efficient way to achieve this because their true counter-current flow eliminates the "correction factors" required by multi-pass shell and tube units.

How do you maintain a Multi-Tube Hairpin Heat Exchanger?

Maintenance is simplified through the use of removable bundles and flanged return headers. This allows for full mechanical cleaning of both the internal tubes and the external shell-side surfaces. Because the units are often modular, individual sections can be serviced without shutting down the entire process line.

Can these exchangers handle high-fouling fluids?

Yes. By incorporating enhancements such as turbulators or finned tubes, we can maintain high velocities and heat transfer rates even with viscous or fouling-prone fluids. The ease of bundle removal ensures that mechanical cleaning is straightforward and effective.

Engineering Your High-Pressure Solution

Request a Multi-Tube Hairpin Quote or Contact Our Design Team
